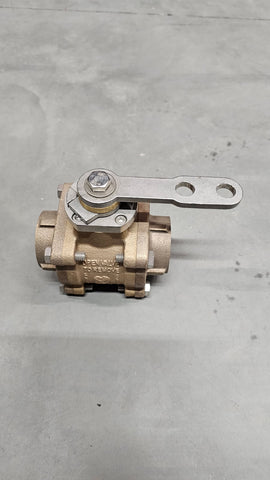

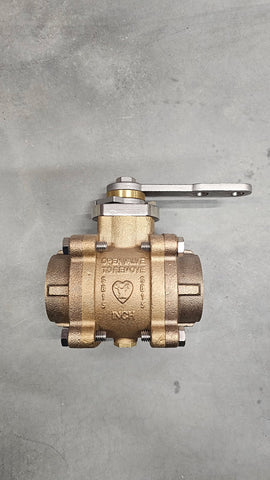

Elkhart Swing Out Valve

1.0″ and 1.5″ Single Body apparatus valves are equipped with an integral actuator of your choice – direct or remote. They’re designed especially for reliability, ease of installation, and ease of use.

The Single Body ball valve is designed to the industry standard dimensions. It features the option to select one of eight handle positions with removal of a single bolt. It’s that simple. Coupling the Single Body Valves with the Unibody apparatus line, Elkhart Brass is your total apparatus valve solution.

Key Features

  • Available in 1.0″ (SB10) & 1.5″ (SB15) body sizes with an integral direct or remote actuator

  • The bodies are constructed of corrosion-resistant brass, and the ball is constructed from durable stainless steel
  • Dual, self-adjusting seats provide bidirectional sealing
  • Adapters (end caps) are constructed of brass and do not require O-rings that could cut or tear during servicing
  • Swing-out construction allows for easy access to internal waterway
  • Handle position can easily be changed to one of eight positions in 45° increments

  • Meets or exceeds NFPA 1900 standards

  • Covered by the Elkhart Brass 10-year Unibody Valve Limited Warranty

The below part numbers are in stock and ready to ship same or next business day!

1430-890 (1" Valve)

1430-2891 (1.5" Valve)

1430-2892 (2" Valve)

1430-2896 (2.5" Valve)

1430-2893 (3" Valve)
