VERSAX® - 6HP - Portable

SKU: 4087-100110
$1,895.00

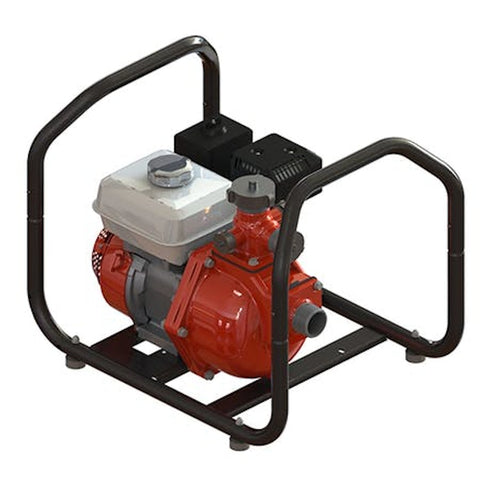

The VERSAX®-6W is powered by a 6 HP Honda engine in a portable configuration with a wraparound frame.

APPLICATIONS

  • Firefighting
  • Tank filling
  • High head general water transfer
  • Boom spraying
  • Irrigation
  • ATV slip-ons

FEATURES AND BENEFITS

  • Twin-impeller design provides additional pressure for longer and higher pumping applications
  • Pump casing and diffusers manufactured from quality corrosion-resistant grade aluminum for long life
  • Nylon glass fiber reinforced impellers are fully corrosion-proof and lightweight
  • Removable discharge and suction ports
  • Provide quick access inside the pump volute
  • Cost-effective ports replacement in case of damage (e.g. damaged threads)
  • 3-way discharge port for easy installation
  • Powder-coated casing for added corrosion resistance
  • Self-priming for more versatile installation options
  • Easy access to drain port
  • Low oil protection
  • Fastwire™ included on all vehicle-mounted units
  • Comprehensive user and service manuals
  • EPA certified
  • Industry Leading Performance and Longevity

MAXIMUM PRESSURE 120 PSI
MAXIMUM FLOW 105 US GPM
MAXIMUM HEAD 277'


83 GPM @ 50 PSI
63 GPM @ 75 PSI
38 GPM @ 100 PSI


ENGINE:

Model: Honda, GX200 Series, 4-stroke, horizontal shaft, OHV, air cooled gasoline

Starting System: manual recoil

PUMP END:

Type: Self-priming 2 stage centrifugal pump

Intake: 2" Male NPT

Discharge: 1.5", 1", 1" Male NPT, 2" Male  BSP

WEIGHT:

70 lbs.

OTHER SPECS:

Discharge Caps: 2x Cap 1" NPSH & Cap 1.5" NPSH (standard)
